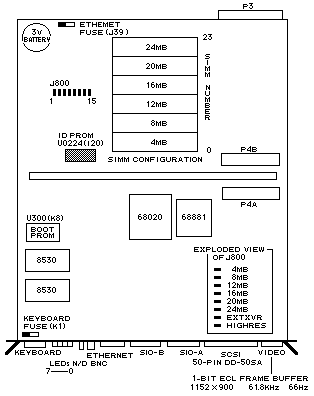

SUN3/60 Architecture

JUMPERPINSSETTONGDESCRIPTION
J8001-2
4MB
3-4
8MB
5-6
12MB
7-8
16MB
9-10
20MB
11-12
24MB

13-14OUTEthernet auto select
13-14INSelect Ethernet
13-14OUTSelect Thin Ethernet

15-16OUTMoniter auto select
15-16OUT1152x900
15-16IN1600x1280


Use 1MB SIMM
