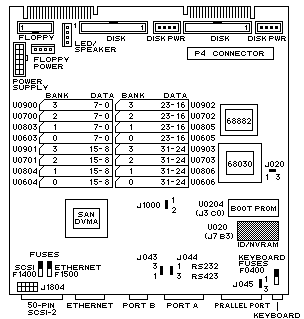

SUN3/80 Architecture

JUMPERPINSSETTONGDESCRIPTION
J10001-2OUTWatchdog reset(test)
J0201-2IN68882 20MHz
3-4OUT68882 40MHz
J043
J044
2-3INRS232C(-12V)
1-2INRS232C(+12V)
J043
J044
1-2INRS423(-5V)
2-3INRS423(+5)


Use 1MB SIMM
